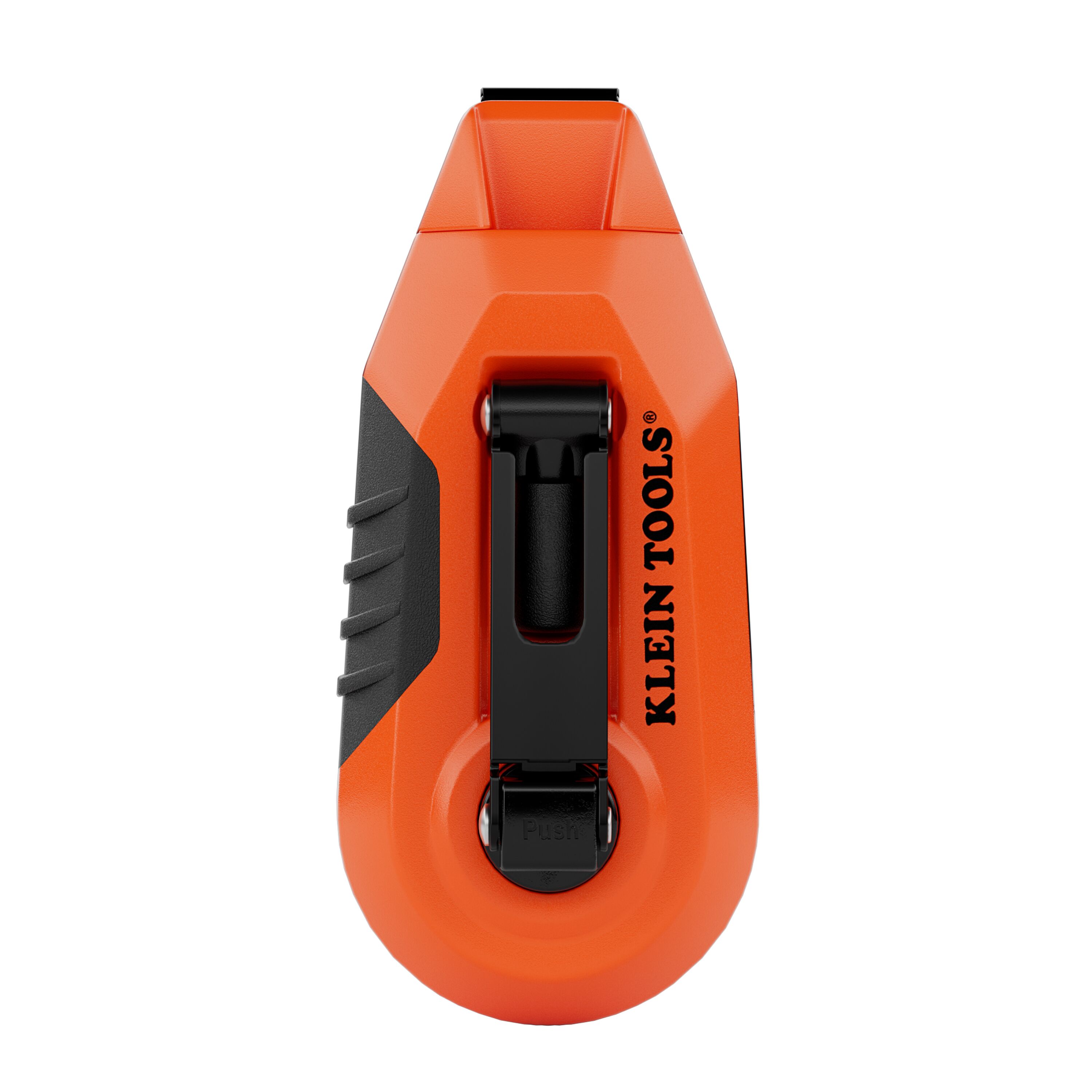

CHLK30S

Slim Chalk Reel, 30-Foot

  • Chalk Reel's 3:1 gear ratio retracts line three times faster than standard chalk reels, significantly improving productivity
  • Chalk level window allows users to monitor chalk levels without opening the reel
  • Secure twist-lock top prevents messy chalk spills in tool bags and pockets while featuring a bottle-nesting design for clean refills
  • Quick-release spool clutch button disengages the handle during line extension for faster, more comfortable line payout
  • Nested hook design eliminates tangling during transport while providing secure anchoring on various surfaces
  • Removable belt clip offers versatile carrying options for different work situations and personal preferences
  • Precisely engineered spool ensures consistent chalk distribution along the full 30-Foot line length
Downloads
Images
High-Res JPG
PNG

ÀÇÓÑÉçÇø Cat. No. CHLK30S 30-Foot Compact Chalk Reel features an advanced 3:1 gear ratio which significantly reduces downtime between marking tasks. The chalk level window allows users to monitor chalk levels without opening the tool, while the twist-lock top prevents chalk from spilling. The quick-release spool clutch button enables rapid line extension and the nested hook design keeps the hook flush against the reel body to prevent tangling during transport.

Specifications
Type:
Manually Retracting
Application:
Create Chalk Lines on Jobsites
Special Features:
Three Times as Fast as 1:1 Gears; Window to Monitor Chalk Levels; Attached Cap to Prevent Spilling; High Impact ABS Case with Rubber Grips; Nested Ring Helps Prevent Tangles
Line Length:
30' (45 m)
Line Material:
Nylon
Fill Weight:
2 oz (57 g)
Gear Ratio:
3:1
Door Type:
Twist-Lock Top
Hook:
Ring
Material:
High Impact ABS Case with Rubber Grips
Overall Length:
4.35'' (11 cm)
Overall Height:
3.60'' (9.1 cm)
Overall Width:
1.97'' (5 cm)
Includes:
Chalk Line; Removable Belt Clip
Weight:
3 oz (86 g)
UPC:
092644861338
Additional Information
Warnings
  • Read, understand, and follow instructions to ensure safe operation.
  • Always wear approved eye protection.
  • See instruction manual for additional warnings.
